How do I password protect objects on my settings page?

EasyBuilder Pro Q&A
How do I password protect objects on my settings page?
none 0.0 0
1
  • HMI Model: cMT2108X2
  • EasyBuilder Pro Version: V6.08.02.401
  • Serial Number or supplier: 2301407117

I have created a Settings page for entering Variable Data for my PLC Tags and I want to set it up so the operator must put in a password in order to make any changes on that page. How do I do this?
I see that the HMI Template has some features to utilize a password feature, but I do not see instructions on how to set this up.

2

Hi @JBennett,

Thank you for contributing to our forum! To password protect an object and use the template to login and logout, please see this tutorial: Link

Note: To password protect multiple objects simultaneously, please follow the instructions shown below.

  1. Select each object:

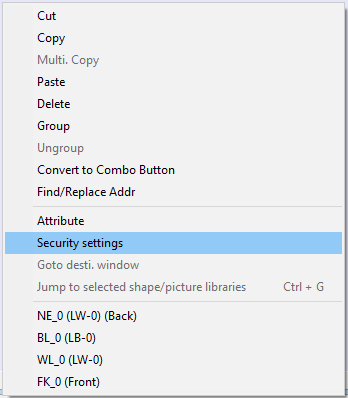

  2. Right click the selected objects and select “Security Settings”:

  3. Within the following menu, configure the required security class.

    image480Ă—671 8.07 KB

1 Like
