Hello,
I need help for meter display’s scale value font and orientation adjustment.
Even though I use the same versions of Easybuilder Pro, in Project 1, I am able to change font of the meter display values via the Font area in Home section. Why cannot I also adjust the font in Project2?

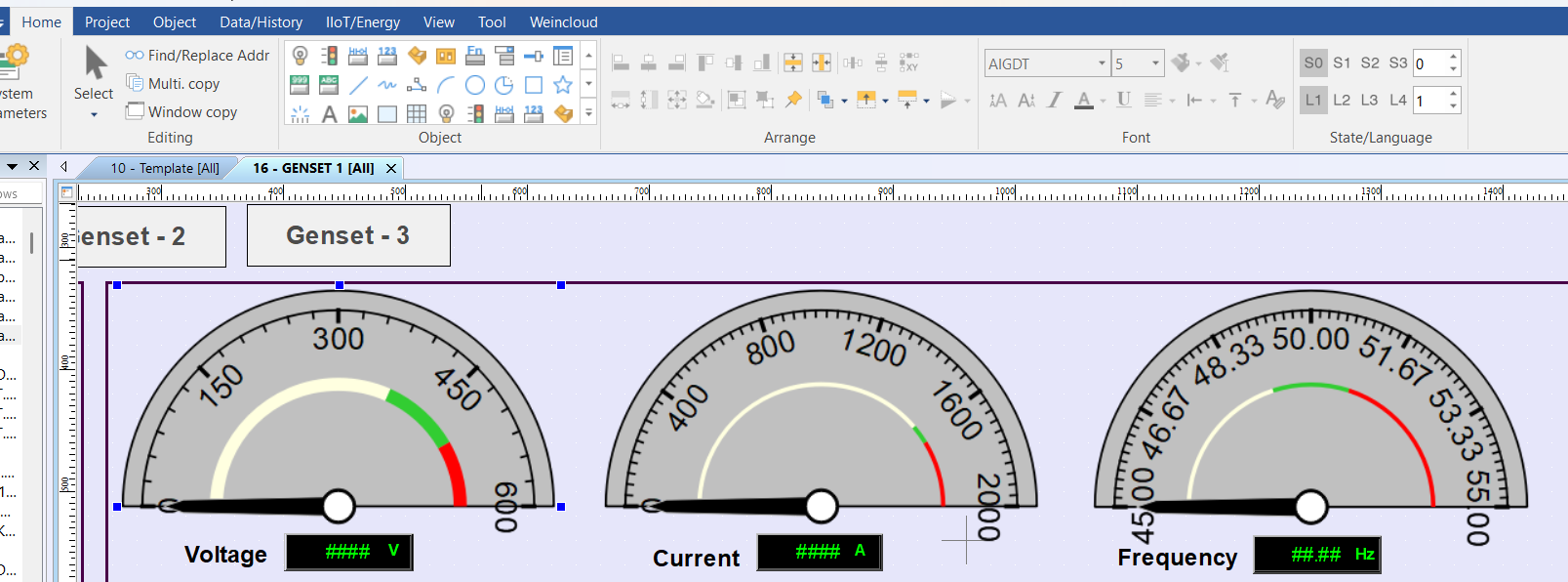

Another question is about the rotation of scale values. The rotation of the scale values cannot be modified in both projects. In Project 1, it is horizontal but in Project 2 it is vertical and cause an extension from meter displays bottom side. How can I solve it in Project 2?

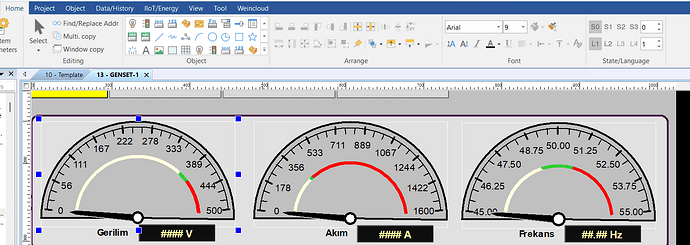

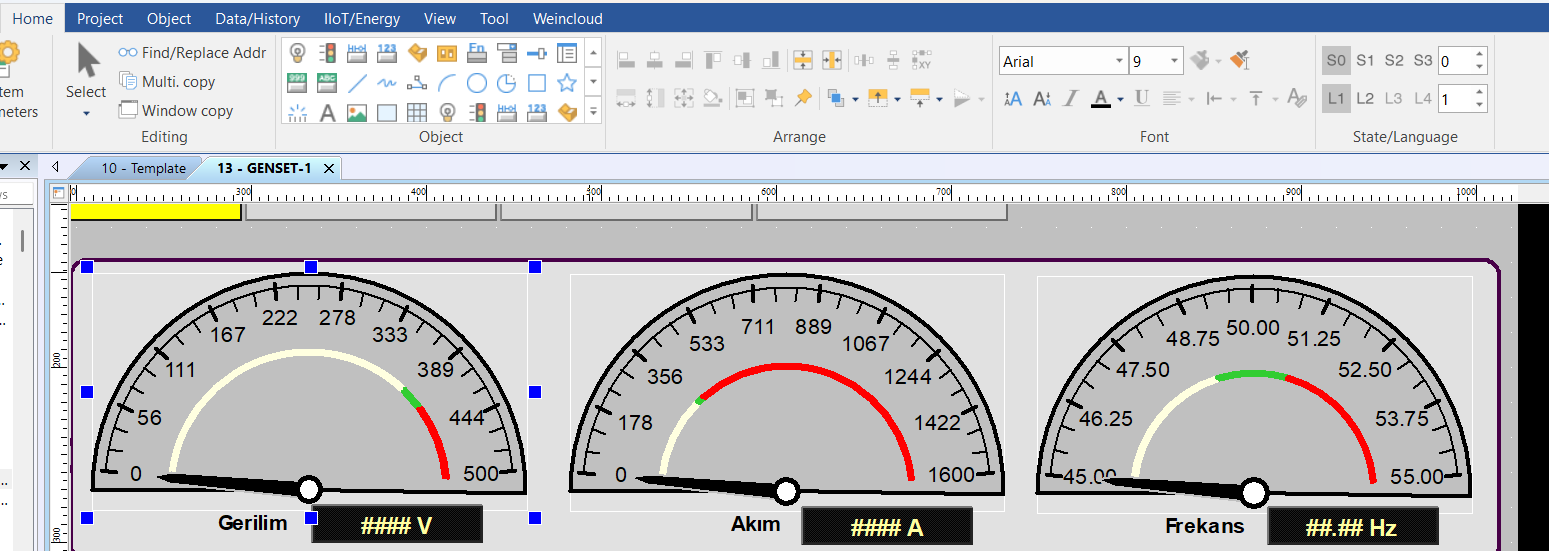

Project1:
- HMI Model: MT8121XE/ MT8150XE (1024x768)
- EasyBuilder Pro Version: V6.09.02.651
Project2:
- HMI Model: cMT2166X (1920x1080)
- EasyBuilder Pro Version: V6.09.02.651
Hi @caglaturkoglu ,
Thank you for your question.
When transitioning from the MT line to the CMT line some features, like the font style, were removed as the text now auto-scales depending on the object size. A way around that is copy and pasting the meter display with the font you want in from project 1 to project 2. Please ensure all setting values are still correct.
Please let me know of any questions or problems you run into!
Thank you!
Hello, thank you for your quick response.
When I copy, it doesn’t have the same font attributes from the parent project so it wasn’t a solution.
The auto-scaling doesn’t work I think since the font of the meter display’s scale values are too big causing an extension from the below part of the meter display. How can I resolve it?
@caglaturkoglu ,
As my colleague previously mentioned there are some features that don’t perfectly align between the MT and cMT line.

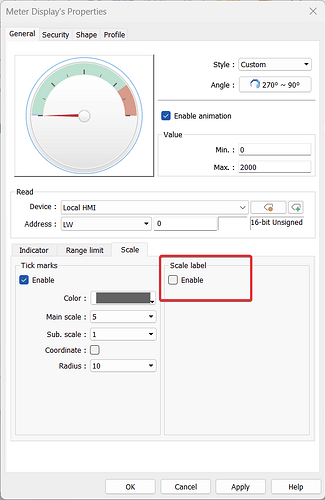

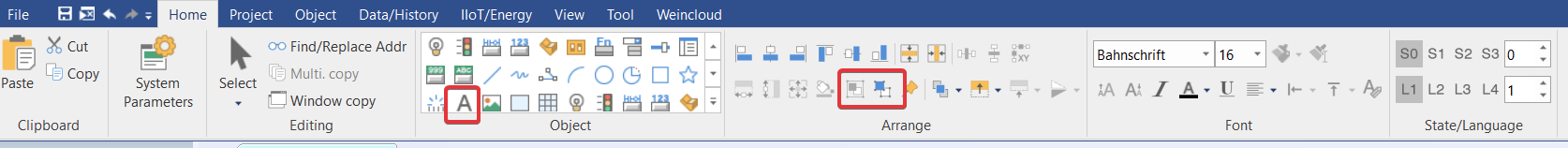

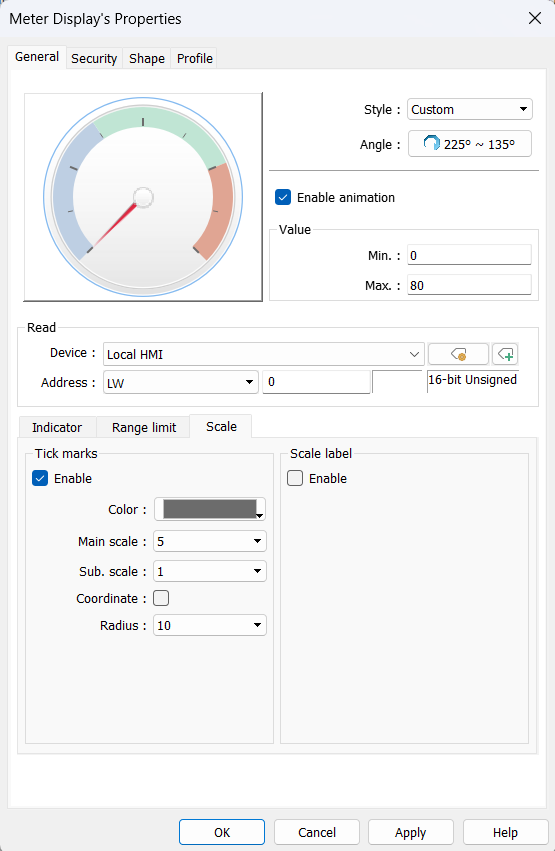

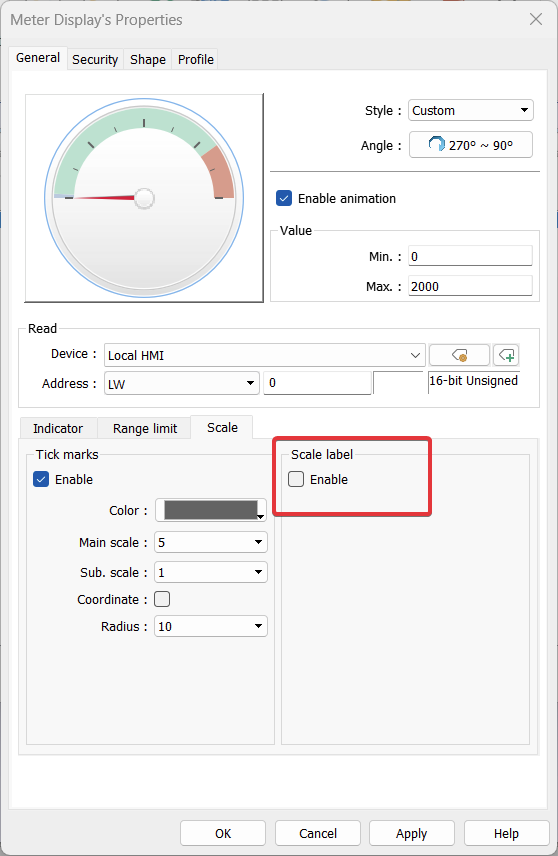

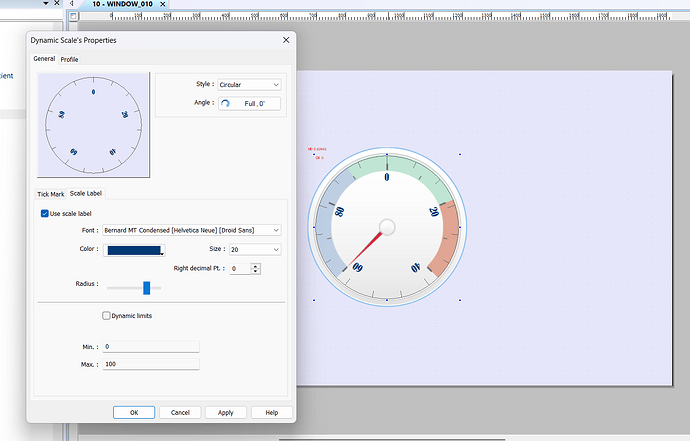

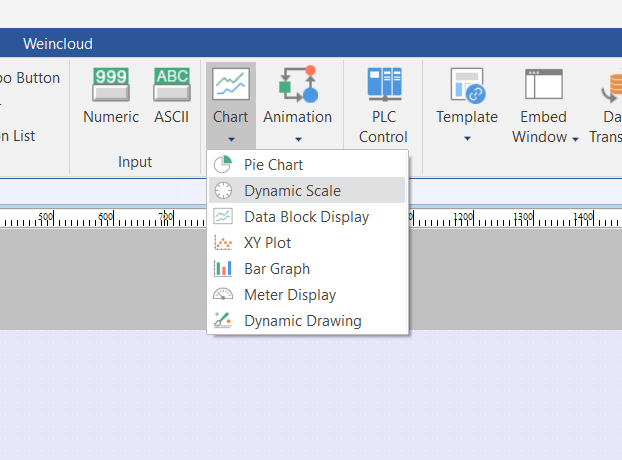

Our best suggestion would be to uncheck the Scale Label from the Meter Display object and overlay a Dynamic Scale object over top of your meter.

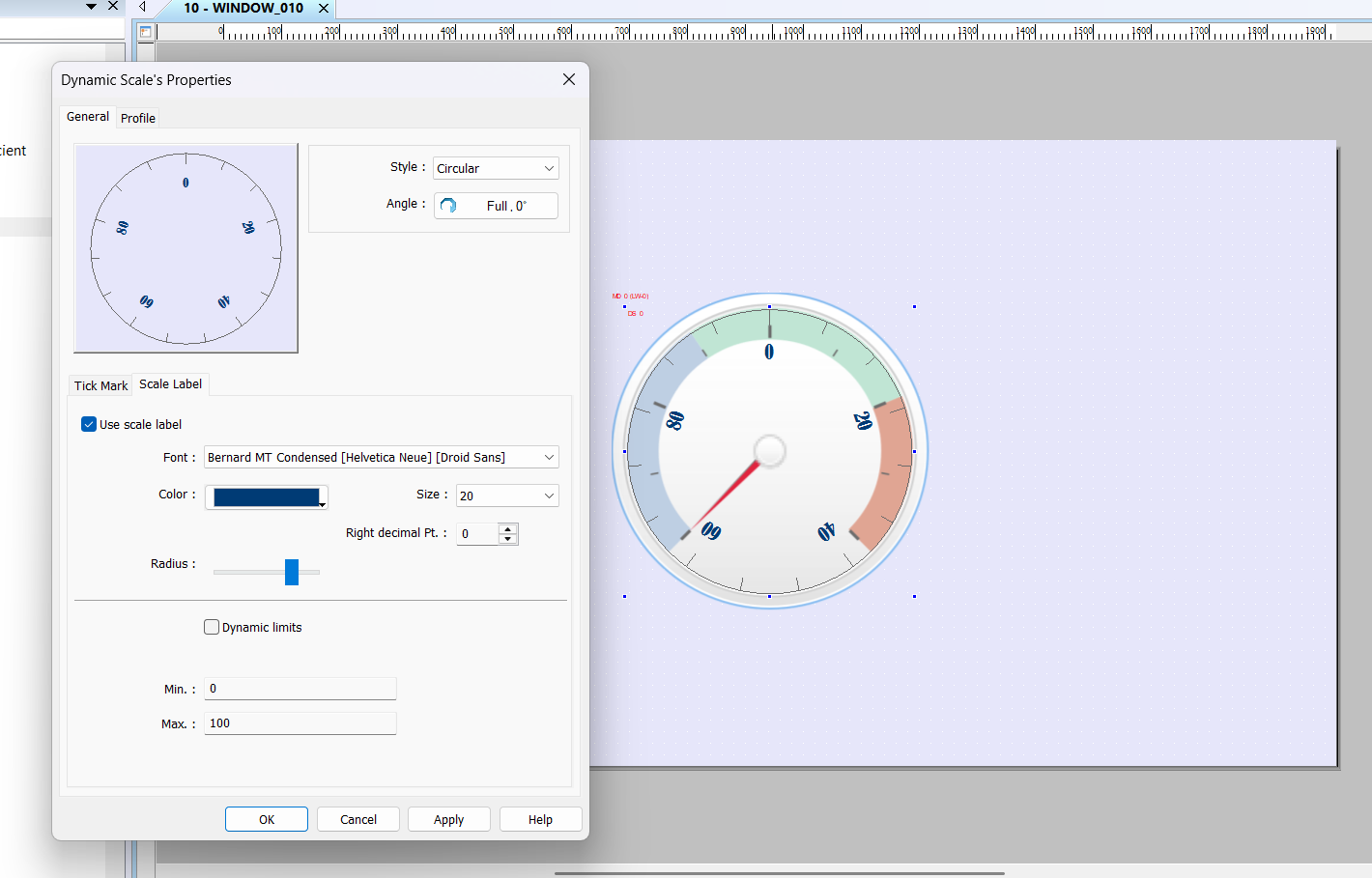

The Dynamic Scale object allows for more customization flexibility than the Meter Display. You can adjust the Font, scaling, orientation, so on and so forth to best suit your project needs.
Hello,

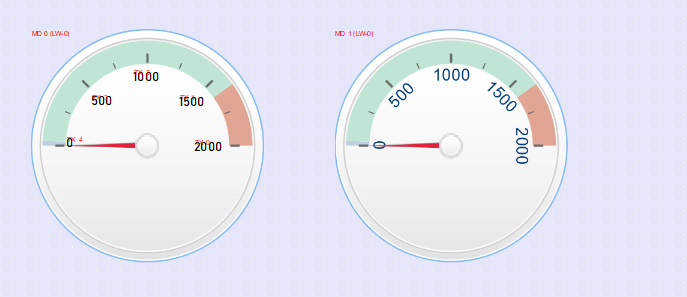

Thank you, now I am able to change the font and it looks better. But still I cannot change the direction of scale values/numbers which causes an extension from the meter display (half circle). Is there any solution for rotation/direction adjustment of scale values?
Hi @caglaturkoglu ,
Glad to hear the fonts are working properly now.
Could you send images of the meter display and its settings set up so I can understand the issue more clearly.
Thank you
Hello,
Unfortunately I cannot add media items in the post. I got an error when I attach a photo.
Hi @caglaturkoglu,
Apologies, there was a mistake on our end. Can you try again to upload your images.
Thank you
