Which LAN is for Codesys?

Codesys & I/O Q&A
Which LAN is for Codesys?
none 0.0 0
1

Started my HMI application with connections as shown in the user manual.
(cMT3000X Series Startup Guide)

LAN1 seems to be for Network connections and LAN2 seems to be for remote I/O devices.

Activated Codesys on our HMI successfully…and now in the system settings LAN1 disappeared from the “General” page and only appears on the Codesys page tab…

Does this mean I/O connects to LAN1 and my programming tool/laptop connects to LAN2??

2

Hi @mike_c_56,

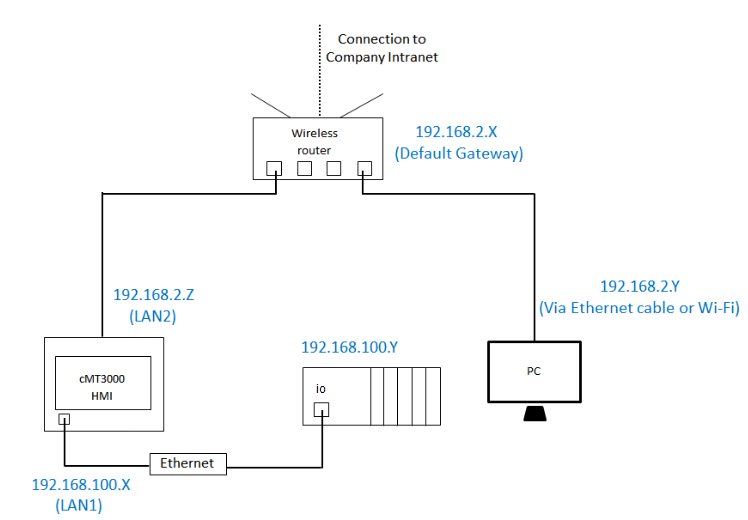

This is correct! Once activated, Codesys has complete control over LAN-1. Here is an example of a network diagram with a Codesys activated cMT HMI:

image748×520 30.6 KB

The IP address of Codesys can be modified within the “Codesys” tab of the cMT settings menu. Here is a tutorial in which we demonstrate how to connect an HMI with built-in Codesys to an iR-ETN: Click Here
