Why is my text alignment incorrect after download?

EasyBuilder Pro Q&A
Why is my text alignment incorrect after download?
none 0.0 0
1
  • HMI Model: CMT3152X
  • EasyBuilder Pro Version:6.10.01.217
    Much of the text in my application appears offset or misaligned between the EBPro offline development and the screens/objects after download. The plain text is off in two axis while a lot of the word lamp labels are off horizontally. Any suggestions on a remedy?
2

Hi @marknorman,

Thank you for contributing to our forum! What font type are you using within your project? Is it a common font such as Calibri or Arial?

3

I changed my font type to Arial Bold [Arial] [Droid Sans] and that resolved the issue. What causes this issue, even Arial Black [Helvetica Neue] [Droid Sans] is mis-aligned.

4

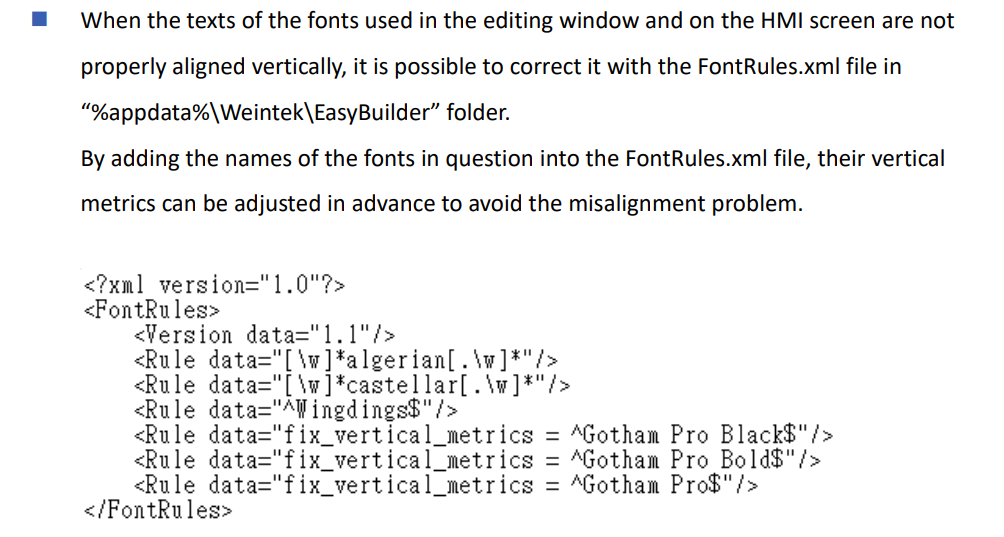

Because the render engine of Linux and Windows are different, follow the instructions to fix Vertical Metrics:

image1004×537 90.7 KB
